PROBES
Delphi RS
Wired Magnetostrictive Level Gauge
MARKING:
INTRINSICALLY SAFE SUITABLE FOR ZERO ZONE
AR18ATEX023 II 1/1G Exia/h IIB T6 Ga/Ga IP68
FISCO FIELD DEVICE Tamb = -40 +80 �C
- Measuring probe accuracy: +- 0,5mm
- Real probe resolution: +- 0,05 mm
- Measuring probe accuracy: +- 0,25 mm
- Real probe resolution: +- 0,01 mm
Mechanical Characteristics
- Stainless steel enclosure AISI 304 – ∅ 42 mm
- IP 68 Protection up to 10 m/24h water submersion
- Tank connection: in riser, threaded or flanged
- Stainless steel pipe AISI 316 ∅ 14.0 mm
- N. 2 INOX AISI 316 / NBR floats ∅ 45 / 50 mm
Electrical Features
- Intrinsically safe circuit to be connected to the passive barrier ISB
- Circular connector M12 – 4 pin polarized
- 1,5m cable type CEI EN 50363 ENI 001.181.00
- Power supply 12-30 VDC
- RS485 serial port communication
Metrological Data
- Product level / mm
- Interface level / mm (water presence detection )
- Product avg. temp. up to 5 temp. sensors
- Temperature accuracy -20 – + 50 ℃ : ±0,2 ℃
PROBES
Delphi RDT
Wireless Magnetostrictive Level Gauge
MARKING:
INTRINSICALLY SAFE SUITABLE FOR ZERO ZONE
AR18ATEX023 II 1/1G Exia/h IIB T6 Ga/Ga IP68
FISCO FIELD DEVICE Tamb = -40 +80 °C
WIRELESS MAGNETOSTRICTIVE PROBE FEATURES
- Transmission frequency 169 MHz for a safe and reliable data transmission from the underground sump tanks
- Wireless magnetostrictive sensor battery powered Intrinsically safe version suitable for 0 zone
- Ultra low power mode
- Data transmission up to 3 km line of sight
- Battery life up to 7 years (depending of settings)
- No costs for cabling and digging
- Fast and easy installation
- Compact design
Mechanical Characteristics
- Stainless steel AISI 305 and Derlin enclosure external diameter ø 42 mm
- IP68 Protect. up to 10 m/24h water sub.
- Tank connection: in riser, threaded or flanged
- Stainless steel pipe AISI 304/316 ø 14.0 mm
- N. 2 INOX AISI 316 / NBR floats ø 45 / 50 mm
Electrical Features
- Intrinsically safe construction for installation in classified 0 zone
- Integrated battery and antenna
- Power supply: intrinsically safe lithium battery
Metrological Data
- Product level / mm
- Interface level / mm (water presence detection )
- Product average temperature max 5 sensor
- Temperature accuracy -20 ÷ + 50 °C: ± 0,2 °C
PROBES

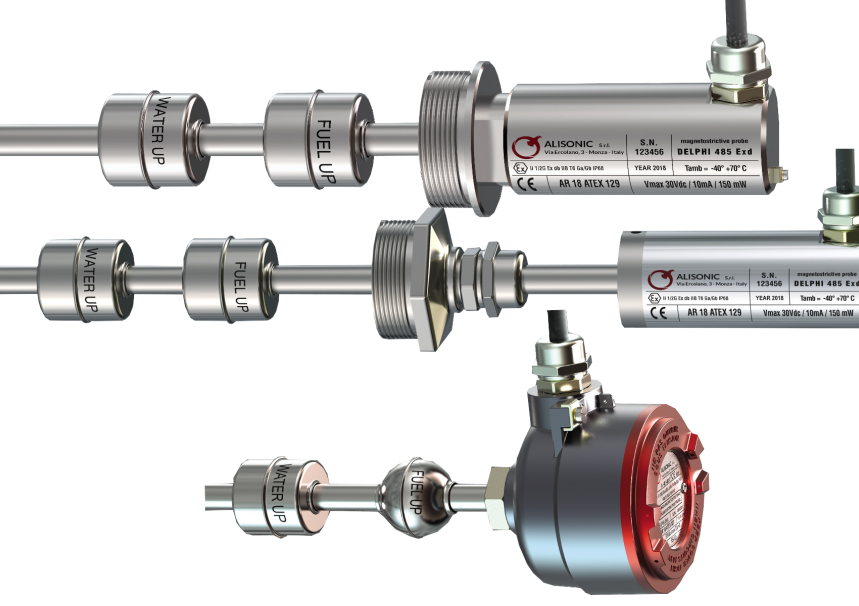

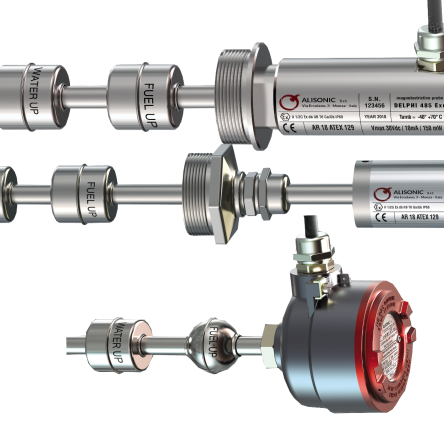

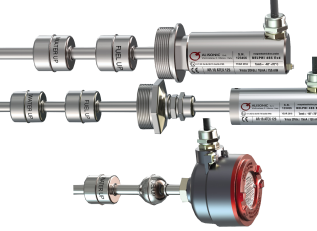

Delphi ExD/SS
Explosion Proof Wired Magnetostrictive Level Gauge
MARKING:
AR 18 ATEX 023 II 1/2G Ex d IIB T6 Ga/Gb IP68
FISCO FIELD DEVICE Tamb = -40 +70°C
- Measuring probe accuracy: ± 0,5mm
- Real probe resolution: ± 0,05 mm
- Measuring probe accuracy: ± 0,05 mm
- Real probe resolution: ± 0,01 mm
Mechanical Characteristics
- Stainless steel AISI303 ø 47mm enclosure
- IP 68 degree protection up to 10 m. water submersion max. 24h.
- Tank connection: threaded of flanged
- Explosion proof construction,
Exd brass nickel coated 1/2″ NPT cable gland - Stainless steel pipe AISI 304 / 316 ø 14.0 mm
- N. 2 stainless steel AISI 316
expanded NBR floats ø 45/50 mm - Delphi ExD/ALU
- Aliminum pressure die casting enclosure IP 68-degree protection up to 1 m. water submersion max. 24 h.
Electrical Features
- 2m cable type CEI EN 50363 ENI 001.181.00
- Power supply 12-30 VDC
- RS485 serial port communication
Metrological Data
- Product level / mm
- Interface level / mm (water presence detection)
- Product avg. temp. up to 5 temp. sensors
- Temperature accuracy -20 ÷ + 50 °C: ± 0,2 °C
PROBES
Delphi 485FX / Delphi RTD FX
Flexible Wireless and Wired Magnetostrictive Level Gauge
MARKING:
INTRINSICALLY SAFE SUITABLE FOR ZERO ZONE
AR18ATEX023 II 1/1G Exia/h IIB T6 Ga/Ga IP68
FISCO FIELD DEVICE Tamb = -40 +80 °C
WIRELESS FLEXIBLE MAGNETOSTRICTIVE PROBE FEATURES
- Transmission frequency 169 MHz for a safe and reliable data transmission from the underground sump tanks
- Wireless magnetostrictive sensor battery powered Intrinsically safe version suitable for 0 zone
- Ultra low power mode
- Data transmission up to 3 km line of sight
- Battery life up to 7 years (depending of settings)
- No costs for cabling and digging
- Fast and easy installation
- Compact design
Mechanical Characteristics
- Measuring range up to 20 m
- Stainless steel AISI 303 Delrin enclosure Ø 42 mm
- IP 68-degree protection up to 10 m.
water submersione max. 24 h. - Tank connection: threaded of flanged
- Corrug. stainless steel pipe AISI 316 Ø 18.0 mm
- N.2 INOX AISI 316 / NBR floats Ø 105/50 mm
Electrical Features
- Intrinsically safe construction 0 zone classified
- Wired RS485 and wireless versions
- Electrical features as above (see Delphi RS and Delphi RTD)
Metrological Data
- Product level / mm
- Interface level / mm (water presence detection )
- Product average temperature max 5 sensor
- Measuring probe accuracy: ± 1.0 mm
- Real probe resolution: ± 0,05 mm
- Repeatability: ± 0,2 mm
- Temperature accuracy -20 ÷ + 50 °C: ± 0,2 °C
PROBES
CYCLOPS
Dial Level Indicators
- For underground and above ground tanks
- Power supply not required
- Remot Communication
- ATEX Compliance
- LPG tanks
- Large fuel stock managements
- Petrochemical plants
- Solvents depots
- Water distribution and treatment plants
- Industrial applications
- Analog 4-20 mA two wire / Smart Hart
- Serial port RS 485 Modbus, communication interface protocol to the main station management systems
- Digital outputs up to 4 mechanical switches standard and Exd versions, intrinsically safe Namur proximity, adjustable set points
- INDICATOR / TRANSMITTER / SWITCH
- IP65 aluminium case
- Wide range of S.S. and resins floats
- Tank connections: threaded, flanged
- Stainless steel pipe 20/40 mm. or flexible corrugated pipe
- Accuracy +- 2,5 mm
- Repeatibility +- 1 mm.
- CYCLOPS 03 measuring range up to 3 m. res. 10 mm
- CYCLOPS 05 measuring range up to 5 m. res 2,5 mm
- CYCLOPS 25 measuring range up to 25 m. res 2,5 mm
- Dial with % reading
- Remote head on the bottom of the tank
- Customized flanges and materials
TRANSMITTER
TRANSMITTER FOR GLOBAL MONITORING (WEB/APP)

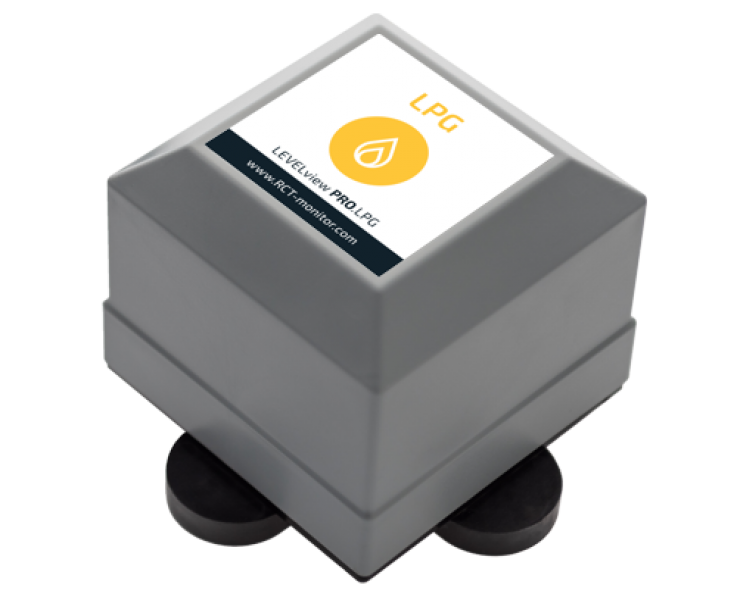

LEVELview.PRO.LPG
Intelligent remote monitoring of liquid gas tank levels (above/below ground, Ex 1) | simple and smart via Web App and Mobile App | modular with various sensors and adapters | quick plug & play installation on existing systems

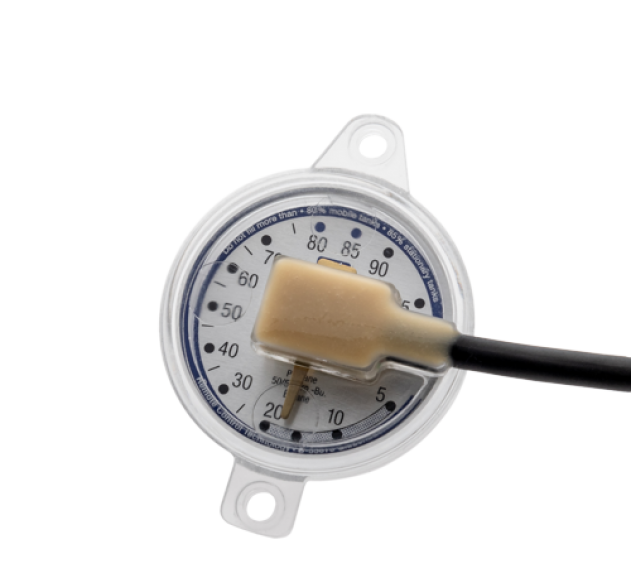

– Hall effect sensors and adapters
– Batteries
– Antennas
The level measurement on the LPG tank is carried out precisely and without contact by means of a Hall effect sensor, which is mounted on the flange of the existing float instead of the level indicator. The compact transmitter unit is protected and approved for use in ATEX Zone 1 and may be mounted in the manhole at underground tanks, under the protective cover or outside at aboveground tanks. Sensor and transmitter can be mounted on the tank quickly and without complex wiring: Fasten sensor with 2 screws, place antenna with magnetic base, connect transmitter with battery pack. That’s all!
Device, transmission and alarm parameters can be individually configured via the Web Platform and Mobile App.
Application: liquefied gas tank (above/below ground, ATEX zone 1)
Measuring method: non-contact level measurement by means of Hall effect sensor (magnetic field)
Sensors: available with different Hall effect sensors/adapters depending on level gauge in the tank (see data sheet)
Commissioning: simple plug & play activation by plugging together with battery pack
Data transmission: GPRS/LTE/4G (alternatively NB-IoT, Sigfox, LoRa-WAN) via integrated SIM chip
Data reception: RCT Cloudserver (Amazon) or individual solution
Programming: via Web App/Mobile App
Cyclic messages: transmission interval freely selectable; message includes current fill level and 24 history fill levels, temperature, battery level, signal strength
Alarms: direct alarms from device (limit values 1+2, exceeding, leakage, filling), indirect alarms via Web App (e.g. 2 additional limit values, device and sensor malfunctions)
Housing: absolutely stable, weatherproof for demanding operating conditions, fully encapsulated, protection class IP 67, ATEX Zone 1 (electronics), ATEX Zone 0 (sensor)
Antenna: external magnetic base antenna with 1.2 m cable for flexible placement on metal surfaces
Downloads
Datasheet LEVELview.PRO.LPG
Quick Guide LEVELview.PRO.LPGQuestions?
Call us or write to us:T: +31 888 888 80
E: info@euromcs.com
TRANSMITTER
TRANSMITTER FOR GLOBAL MONITORING (WEB/APP)

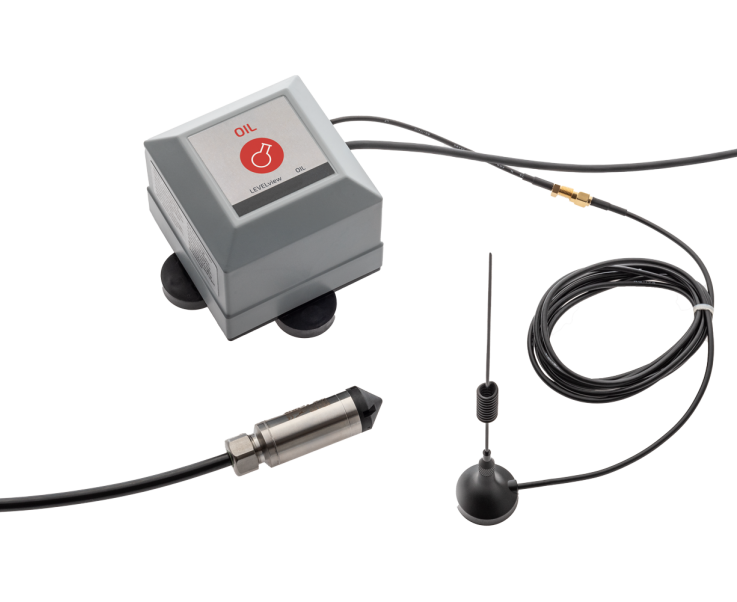

LEVELview.PRO.OIL
Intelligent remote monitoring of levels in oil, waste oil, diesel, petrol and A1 fuel tanks (above/below ground, Ex 1/0) | simple and smart via Web App and Mobile App | modular with various sensors | quick plug & play installation on existing systems
- Pressure probes
- Capacitive sensors
- Batteries
- Antennas
The level measurement on the oil, diesel and fuel tank is carried out precisely by means of a hydrostatic pressure probe or capacitive sensor. The compact transmitter unit is suitable for all commercially available tank shapes: standing or lying cylinder, rectangular tank, above and below ground. Prerequisite is a suitable free tank opening (diameter at least 1″). The installation of pressure probe or capacitive sensor can be carried out independently of filling level, even when the tank is full. Special pressure probes with Ex 0 approval are available for fuels.
Device, transmission and alarm parameters can be individually configured via the Web Platform and Mobile App.
Application: oil, waste oil, diesel, petrol, A1 fuel tanks (above/below ground, Ex 1/0)
Measuring method: precise level measurement with hydrostatic pressure probe or capacitive sensor
Sensors: different pressure probes or capacitive sensor depending on medium and tank parameters
Commissioning: simple plug & play activation by plugging together with battery pack
Data transmission: GPRS/LTE/4G (alternatively NB-IoT, Sigfox, LoRa-WAN) via integrated SIM chip
Data reception: RCT Cloudserver (Amazon) or individual solution
Programming: via Web App/Mobile App
Cyclic messages: transmission interval freely selectable; message includes current level and 24 history levels, temperature, battery level, signal strength
Alarms: direct alarms from device (limit values 1+2, exceeding, leakage, filling), indirect alarms via Web App (e.g. 2 additional limit values, device and sensor malfunctions)
Housing: absolutely stable, weatherproof, fully encapsulated, protection class IP 67, EX Zone 1 (electronics), EX Zone 0 (sensor)
Antenna: external magnetic base antenna with 1.2 m cable for flexible placement on metal surfaces
Downloads
Data sheet LEVELview.PRO.OIL
Quick Guide LEVELview.PRO.AQUA+OIL
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
TRANSMITTER
TRANSMITTER FOR GLOBAL MONITORING (WEB/APP)
LEVELview.PRO.AQUA
Intelligent remote monitoring of water levels e.g. in cisterns and tanks (above/below ground) | simple and smart via Web App and Mobile App | modular with different sensors | quick plug & play installation on existing systems
- Pressure probes
- Capacitive sensors
- Batteries
- Antennas
The level measurement on water tanks is carried out precisely by means of a hydrostatic pressure probe or capacitive sensor. The compact transmitter unit is suitable for all commercially available tank shapes: standing or lying cylinder, rectangular tank, above and below ground. Prerequisite is a suitable free tank opening (diameter at least 1″). The installation of pressure probe or capacitive sensor can be done independently of filling level even when the tank is full.
Device, transmission and alarm parameters can be individually configured via the Web Platform and Mobile App.
Application: water cisterns and tanks (above/below ground)
Measuring method: precise level measurement with hydrostatic pressure probe or capacitive sensor
Sensor: different pressure probes or capacitive sensor depending on medium and tank parameters
Commissioning: simple plug & play activation by plugging together with battery pack
Data transmission: GPRS/LTE/4G (alternatively NB-IoT, Sigfox, LoRa-WAN) via integrated SIM chip
Data reception: RCT Cloudserver (Amazon) or individual solution
Programming: via Web App/Mobile App
Cyclic messages: Transmission interval freely selectable; message includes current level and 24 history levels, temperature, battery level, signal strength
Alarms: direct alarms from device (limit values 1+2, exceeding, leakage, filling), indirect alarms via Web App (e.g. 2 additional limit values, device and sensor malfunctions)
Housing: absolutely stable, weatherproof, fully encapsulated, protection class IP 67
Antenna: external magnetic base antenna with 1.2 m cable for flexible placement on metal surfaces
Downloads
Data sheet LEVELview.PRO.AQUA
Quick Guide LEVELview.PRO.AQUA+OIL
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
TRANSMITTER
TRANSMITTER FOR GLOBAL MONITORING (WEB/APP)
LEVELview.MOBILE (with GPS)
Intelligent level and position monitoring of mobile barrels, IBC tanks and containers, e.g. in the chemical and pharmaceutical industry | simple and smart via radio, Web App and Mobile App | quick plug & play installation directly in tank opening
Downloads
Downloads
Data sheet LEVELview.MOBILE
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
This robust transmitter unit offers everything in one: level measurement via capacitive cable sensor, temperature detection of the medium as well as localization of the tank via GPS/cell IDs.
The highlight: The device can be mounted and screwed directly in the tank opening of the container. The integrated SIM chip transmits the data worldwide via GPRS. No matter where the tank is, you can keep an eye on all parameters via App. The unit is certified for use in Ex Zone 1/0.
Application: mobile barrels, IBC tanks and containers
Sensor: capacitive cable sensor
Commissioning: simple plug & play activation by connecting to battery pack
Data transmission: GPRS/LTE/4G via integrated SIM chip and radio 868.45 MHz
Data reception: RCT Cloudserver (Amazon) or individual data management solution; RCT radio receiver LEVELview.WLAN
Programming: via Web App
Cyclic messages: every 24 hours, transmission time freely selectable, message includes 24 level measurement values
Transmitted data: AD value (0…9999), level in % (0…99), battery level, GPS data, functional parameters
Alarms: immediately on defined event (e.g. min./max. limits, battery exhausted, temperature limit)
Housing: UV-resistant, gas-tight, fully encapsulated plastic/stainless steel housing, protection class IP65 (IP54 when using a fuse pin), Ex Zones 0/1
TRANSMITTER
TRANSMITTER FOR LOCAL MONITORING (RF)
Transmitter for Local Monitoring
(Radio signal 868.45 MHz up to 1.500 m)
LEVELview.BASIC.LPG
Level monitoring of liquid gas tanks (above/below ground, Ex 1) | local data transmission to RCT Radio Receivers e.g. LCD Display in living area, WLAN module and Data Logger | modular with different sensors and adapters | quick plug & play installation on existing systems
- Hall effect sensors and adapters
- Batteries
- Antennas

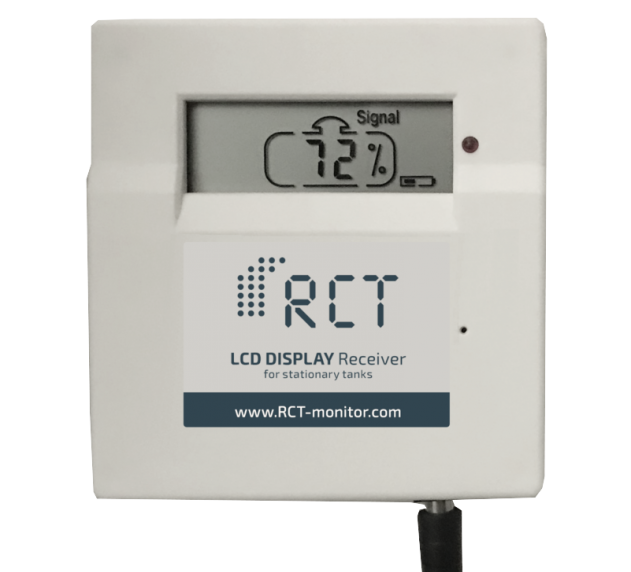

- Radio Receiver LCD Display
- Radio Receiver Interface
- Radio Receiver LEVELview.WLAN
- Data logger REMOTE PROFI GSM
The level measurement on the LPG tank is carried out precisely and without contact by means of a Hall effect sensor, which is mounted on the flange of the existing float instead of the level indicator. The compact transmitter unit is protected and approved for use in ATEX Zone 1 and may be mounted in the manhole at underground tanks, under the protective cover or outside at aboveground tanks. Sensor and transmitter can be mounted on the tank quickly and without complex wiring: Fasten sensor with 2 screws, place antenna with magnetic base, connect transmitter with battery pack – That’s all!
Instantly, the current level value is recorded and regularly transmitted by radio frequency to the desired Radio Receivers.
Application: liquefied gas tank (above/below ground, ATEX zone 1)
Measuring method: non-contact level measurement by means of Hall effect sensor (magnetic field)
Sensor: available with different Hall effect sensors/adapters depending on the level transmitter in the tank (see data sheet)
Commissioning: Simple plug & play activation by plugging together with battery pack
Data transmission: Radio frequency 868.45 MHz, range up to 1.500 m (free field)
Data reception: RCT Radio Receiver LCD Display, Interface Receiver 4-20 mA, LEVELview.WLAN, Data logger
Programming: pre-programmed delivery, automatic configuration at first power-up
Cyclic messages: hourly
Housing: absolutely stable, weatherproof for demanding operating conditions, fully encapsulated, protection class IP 67, ATEX zone 1 (electronics), ATEX zone 0 (sensor)
Antenna: external magnetic base antenna with 1.2 m cable for flexible placement on metal surfaces
Downloads
Data sheet LEVELview.BASIC.LPG
Quick Guide LEVELview.BASIC.LPG
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
TRANSMITTER
TRANSMITTER FOR LOCAL MONITORING (RF)
Transmitter for Local Monitoring
(Radio signal 868.45 MHz up to 1.500 m)
LEVELview.BASIC.OIL
Level monitoring of oil, waste oil, diesel, gasoline and A1 fuel tanks (above/below ground, Ex 1/0) | local data transmission to RCT Radio Receivers e.g. WLAN module and Data logger | modular with different sensors | quick plug & play installation on existing systems
- Pressure probes
- Capacitive sensors
- Batteries
- Antennas
- Radio Receiver LCD Display (on request)
- Radio Receiver Interface Receiver
- Radio Receiver LEVELview.WLAN
- Data logger REMOTE PROFI GSM
The level measurement on the oil, diesel and fuel tank is carried out precisely by means of hydrostatic pressure probe or capacitive sensor. The compact transmitter unit is suitable for all commercially available tank shapes: standing or lying cylinder, rectangular tank, above and below ground. Prerequisite is a suitable free tank opening (diameter at least 1″) for sensor installation. This can be done independently of the filling level, even when the tank is full. The tank opening can be sealed airtight by means of screw fittings.
Instantly after activation of the transmitter unit, the current fill level value is measured and regularly transmitted by radio to the desired Radio Receivers.
Application: oil, waste oil, diesel, gasoline and A1 fuel tanks (above/below ground, Ex 1/0)
Measuring method: precise level measurement with hydrostatic pressure probe / capacitive sensor
Sensor: different pressure probes / capacitive sensor depending on medium and tank parameters
Commissioning: easy plug & play activation by plugging together with battery pack
Data transmission: Radio frequency 868.45 MHz, range up to 1,500 m (free field)
Data reception: RCT Radio Receiver LCD Display (on request), Interface Receiver 4-20 mA, LEVELview.WLAN, Data logger
Programming: pre-programmed delivery, automatic configuration at first power-up
Cyclic messages: hourly
Housing: absolutely stable, weatherproof for demanding operating conditions, fully encapsulated, protection class IP 67, ATEX zone 1 (electronics), ATEX zone 0 (sensor)
Antenna: external magnetic base antenna with 1.2 m cable for flexible placement on metal surfaces
Downloads
Data sheet LEVELview.BASIC.OIL
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
TRANSMITTER
TRANSMITTER FOR LOCAL MONITORING (RF)
Transmitter for Local Monitoring
(Radio signal 868.45 MHz up to 1.500 m)
LEVELview.BASIC.AQUA
Level monitoring of water levels e.g. in cisterns and tanks (above/below ground) | local data transmission to RCT Radio Receivers e.g. WLAN module and Data logger | modular with different sensors | quick plug & play installation on existing systems
- Pressure probes
- Capacitive sensors
- Batteries
- Antennas
- Radio Receiver LCD Display (on request)
- Radio Receiver Interface Receiver
- Radio Receiver LEVELview.WLAN
- Data logger REMOTE PROFI GSM
Level measurement on water tanks is carried out precisely by means of hydostatic pressure probe or capacitive sensor. The compact transmitter unit is suitable for all commercially available tank shapes: standing or lying cylinder, rectangular tank, above and below ground. Prerequisite is a suitable free tank opening (diameter at least 1″) for sensor installation. The installation of pressure probe or capacitive sensor can be carried out independently of the filling level, even when the tank is full.
Instantly after activation of the transmitter unit, the current level value is measured and regularly transmitted by radio to the desired Radio Receivers.
Application: cisterns and tanks with water/grey water (above/below ground)
Measuring method: precise level measurement by hydrostatic pressure probe / capacitive sensor
Sensor: different pressure probes / capacitive sensor
Commissioning: easy plug & play activation by plugging together with battery pack
Data transmission: Radio frequency 868.45 MHz, range up to 1.500 m (free field)
Data reception: RCT Radio Receiver LCD Display (on request), Interface Receiver 4-20 mA, LEVELview.WLAN, Data logger
Programming: pre-programmed delivery, automatic configuration at first power-up
Cyclic messages: hourly
Housing: absolutely stable, weatherproof for demanding operating conditions, fully encapsulated, protection class IP 67, ATEX zone 1 (electronics), ATEX zone 0 (sensor)
Antenna: external magnetic base antenna with 1.2 m cable for flexible placement on metal surfaces
Downloads
Data sheet LEVELview.BASIC.AQUA
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
CONSOLES

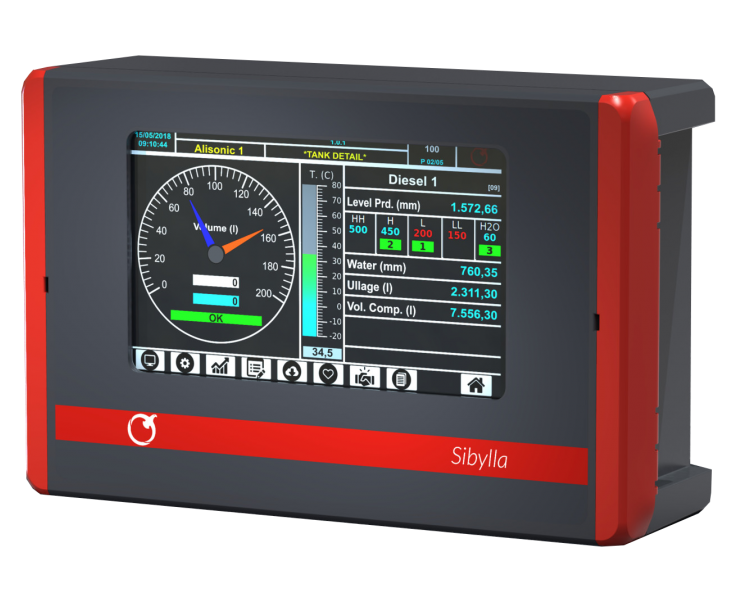

SIBYLLA
– Wet stock management up to 36 tanks
– Wide graphical display with resistive graphical 7″ TFT resistive touch screen
– Easy and smart configuration tools through local graphical interface or web
– Interface protocols with the main communication protocols used by the more common station management system (Gilbarco, Doms, Dresser Wayne, Tokheim, etc,)
– Automatic reconciliation
– Dynamic and statically leakage
– Tank auto – calibration
– Deliveries, trend, events, alarms recording
– Pressure Levell Leak Detection management (PLLD)
– The display shows:
– Product level/mm
– Interface level/mm (water pesence detection)
– Real and compensate volume at 15 °C in liters
– Product mean temperature 5 temp. sensors
– Volume of empty part in liters (ullage)
- CPU Cortex ARM A7 @ 528 MHz processor
- 512 Mb DDR3L memory
- Storage event recording (8Gb micro-SD card)
- IP 41 protection degree polycarbonate enclosure
- Enclosure dimensions 280 x 170 x 60 mm
- Power supply 100-230 Vac
- N.8 programmable input channels I/O
digital or analogic 4-20 mA two wires - Up to N.4 programmable relais 125 VAC
2A SPDT alarms output - RS 485 field bus wiring
- N.2 RS 232 (communication to POS
and/or serial printer) - Ethernet port
- N. 2 usb ports
CONSOLES
MARS
Console – Automatic Tank Gauge Service Stations and Depot
- Explosion proof design
- Manages up to 4 tanks
- Color 3,5″ TFT graphical display
- Tank strapping table up to 100 lin. pts.
- The display shows:
– Product level/mm
– Interface level/mm (water presence detection)
– Real and compensate volume at 15 °C in liters
– Product mean temperature 5 temp. sensors
– Volume of empty part of the tank in liters (ullage)
- Aluminum pressure die casting enclosure IP 68 degree protection up to 1 m. water submersion
- N.2 buttoms to activate the internal battery back up recovery and to change the pages
- N.4 programmable input channels I/O
digital or analogic 4-20 mA two wires - Up to N.4 relais 125VAC 2A SPDT
alarms output programmable - N.2 RS 485 field bus and system wiring
- RS 232: external serial printer
CONSOLES
Helios TFT
Console – Automatic Tank Gauge Service Stations and Depot
- Manages up to 4 tanks
- Colour 3,5 ” TFT touch screen graphical display
- Tank strapping table (100 linearization points)
- The display shows:
– Product level/mm
– Interface level/mm (water pesence detection)
– Real and compensate volume at 15 °C in liters
– Product mean temperature 5 temp. sensors
– Volume of empty part in liters (ullage)
Aluminum pressure die casting enclosure IP 68 degree protection up to 1 m. water submersion
- N.4 programmable input channels I/O digital or analogic 4-20 mA two wires
- Up to N.4 relais 125VAC 2A SPDT alarms output programmable
- N.2 RS 485 field bus and system wiring
- RS 232: external serial printer
CONSOLES
Helios PRN
Printer – Automatic Tank Gauge Service Stations and Depot
- Wall mounting printer
- Polycarbonate IP41 enclosure
- Enclosure dimensions 151 x 125 x 60 mm
- 200 dpi high quality speed
- Width paper 58mm
- Paper 55-70 g/mq, Ø 50 mm
- Power supply 220Vac
- 4Mb flash internal memory logos and fonts
- RS232 interface
- International fonts available
- Sensor: temperature head, paper presence
- UL, CE, FCC compliance
- Temperature extended -20 +70° C
RECEIVER
LCD DISPLAY Receiver
Receiver for Local Data Reception
(Radio signal 868.45 MHz up to 1.500 m)
Display of tank contents in conjunction with RCT Radio Transmitter LEVELview.BASIC.LPG for LPG tanks (tanks with oil, water, etc. on request) | radio range up to 1.500 m | display optionally in percent or litres (4-digit) | warning LED for minimum fill level below 20%
- Radio Transmitter LEVELview.BASIC.LPG
- Radio Transmitter LEVELview.BASIC.OIL (on request)
- Radio Transmitter LEVELview.BASIC.AQUA (on request)
- Antennas
The tank level can be conveniently read and monitored on the LCD display, e.g. in the home or office. The device receives the coded signal (868 MHz) from up to four RCT Radio Transmitters type LEVELview.BASIC within a range of up to 1.500 m (free field). The device only needs to be connected to a 230V socket by power cable. As soon as the assigned Transmitter is activated on the tank, the current fill level can be read as percentage value and alternatively be switched to liter display (4-digit). A red LED, warning and battery symbol indicate a minimum fill level below 20 percent, a discharged transmitter battery or interrupted radio connection.
Application: level indicator for stationary liquefied gas tanks (tanks for oil, water, etc. on request)
Display: level in percent (0 … 99 %) or in liter (0 … 9.999 l)
Data reception: automatic finding and receiving of the radio signal from up to four RCT Radio Transmitters type LEVELview.BASIC.LPG (oil, water and others on request)
Frequency: 868.45 MHz
Range: up to 1.500 m (free field)
Power supply: adapter 230 V / 50 Hz AC / 5 V DC / 300 mA
Mounting: wall mount (2 screws)
Housing: plastic, indoor use only
Downloads
Data sheet Radio Receiver LCD DISPLAY
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
RECEIVER
INTERFACE Receiver (4-20 mA)
Receiver for Local Data Reception
(Radio signal 868.45 MHz up to 1.500 m)
Data reception of an RCT Radio Transmitter LEVELview.BASIC and output of level value as an analog signal of 4-20 mA for integration into control systems | additional relay output for initiating an action at a certain level or alarm situation | radio range 500 m
- Radio Transmitter LEVELview.BASIC.LPG
- Radio Transmitter LEVELview.BASIC.OIL (on request)
- Radio Transmitter LEVELview.BASIC.AQUA (on request)
- Antennas
The device receives the coded signal (868 MHz) from an RCT Radio Transmitter type LEVELview.BASIC within a radius of up to 500 m (free field). It is connected to a 230V socket by a power cable. As soon as the assigned transmitter is activated on the tank, the current fill level is received and output as an analog signal. At the same time, a relay can be switched at a certain level value or an alarm situation. Four LED lights show the operating status of the connections, regular signal reception as well as low battery charge of the assigned transmitter.
Application: conversion of level value into analog signal of 4-20 mA for integration into control systems, plus relay control depending on level/battery/signal
Analog output: current output 4-20 mA e.g. 0% level = 4 mA, > 85 % level = 20 mA
Relay output: potential-free change-over contact, programmable via rotary code switch (level in 10% steps/battery/signal)
Data reception: automatic finding and receiving of the radio signal of an RCT Radio Transmitter type LEVELview.BASIC
Frequency: 868.45 MHz
Range: up to 500 m (free field)
Power supply: power adapter 230 V / 50 Hz
Mounting: wall mount (2 screws)
Housing: plastic, indoor use only
Downloads
Data sheet Radio Receiver INTERFACE
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
RECEIVER
LEVELview.WLAN
Receiver for Local Data Reception
(Radio signal 868.45 MHz up to 1.500 m)
Local data reception from up to 12 RCT Radio Transmitters LEVELview.BASIC | data forwarding via in-house WiFi into the global network for cloud-based management via Mobile App and Web App | radio range up to 1.500 m
LEVELview.BASIC + LEVELview.WLAN = LEVELview.ADVANCED
- Radio Transmitter LEVELview.BASIC.LPG
- Radio Transmitter LEVELview.BASIC.OIL)
- Radio Transmitter LEVELview.BASIC.AQUA
- Antennas
The device receives the coded signal (868 MHz) from up to 12 RCT Radio Transmitters type LEVELview.BASIC within a range of up to 1.500 m (free field). The Radio Receiver is easily configured using a PC or smartphone by a user-friendly menu navigation. The data received at defined intervals is stored internally and sent regularly in encrypted form to a defined IP address (cloud storage) via an in-house WiFi network. This makes it possible to display the information on smartphones and PCs worldwide. Alarm messages on defined limit values can be forwarded via email, SMS or push notification.
Application: reception of radio signals from LEVELview.BASIC transmitters and forwarding to the global network for cloud-based management via Mobile App and Web App
Data reception: automatic finding and receiving of the coded radio signal from up to 12 RCT Radio Transmitters type LEVELview.BASIC (868.45 MHz, up to 1.500 m in free field)
Programming: by internal menu navigation via computer, smartphone or tablet
Data transmission: via in-house WiFi network
Data format: VPN encryption
Cyclic messages: transmitter number (1-12), transmitter name and type, measured value (level, counter value), temperature (°C), battery voltage, signal strength
Alarms: setting of limits and alarms in the Web Application
Power supply: power adapter 230 V
Mounting: wall bracket (2 screws)
Housing: plastic, indoor use only
Downloads
Data sheet LEVELview.WLAN
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
SENSORS
Hall-Effect Sensors + Adapter for Gas Tanks
Non-contact level detection on liquified gas tanks | use in conjunction with RCT Transmitter LEVELview.LPG | replaceable (3-pin screw connection, IP68 connector)
- Transmitter LEVELview.PRO.LPG
- Radio Transmitter LEVELview.BASIC.LPG
The sensor can be connected to a RCT Transmitter LEVELview.LPG by cable with plug. On the LPG tank, simply replace the existing level indicator on the flange of the float with the Hall effect sensor (2 screws). For some float types, an adapter must also be used. On request, original sensors can also be used (e.g. Rochester Magnetel 4″/8″).
RCT Sensors
- Sensor Type RCT junior: compatible with level gauge Type Rochester junior and SRG 487
- Sensor Type Livello: compatible with level gauge Type Livello
- Sensor Type Cotrako: compatible with level gauge Type Cotrako
Original Sensors
- Sensor Original Rochester 4“
- Sensor Original Rochester 8“ Centerline
- Sensor Original Rochester 8“ Straddleline
Adapter for use in conjunction with standard sensor type RCT junior:
- Adapter Rochester senior 2“
- Adapter SRG 705
- Adapter Taylor 4“
- Adapter Taylor 8“
Downloads
RCT Infosheet Hall effect sensors
Questions?
Call us or write to us:
T: +31 888 888 80
E: info@euromcs.com
SENSORS
Pressure Probes for Oil and Water Tanks
(others on request)
Piezoresistive Keller pressure probes for precise level measurement of oil and water tanks with high standards of accuracy and durability | used in conjunction with RCT Transmitter LEVELview.OIL/AQUA | exchangeable
TYPES:
- Pressure Probe 0.25 bar/5 m: measuring range oil 290 cm/water 250 cm; cable length 5 m; incl. 1″ plug and cable gland
- Pressure Probe 0.5 bar/5 m: measuring range and cable length 5 m; incl. 1″ plug and cable gland
- Others on request, e.g. for fuels in Ex-Zone 0
- Transmitter LEVELview.PRO.OIL
- Transmitter LEVELview.PRO.AQUA
- Radio Transmitter LEVELview.BASIC.OIL
- Radio Transmitter LEVELview.BASIC.AQUA
The sensor can be connected to an RCT Transmitter type LEVELview by cable with plug.The pressure probe is inserted through a suitable free tank opening (diameter min. 1″) to the lowest point in the tank and the opening is sealed airtight by means of screw fittings.
For fuels, probes are available on request for use in Ex zone 0.
Application: piezoresistive Keller pressure probe for level measurement at oil and water tanks with high standard of accuracy and durability, no pressure hysteresis
Voltage protection: integrated overvoltage and reverse polarity protection
Protection class: IP68
Housing: compact, robust stainless steel housing, plastic cap protects steel diaphragm
Pressure range: 200 mbar to 10 bar (equivalent to 2m to 100 m water column)
Current output: 4…20 mA (2-wire technology)
Voltage output: 0…10 V, 0.5…4.5 V etc. (not ratiometric)
Connection: 3-pole screw connection, IP68 connector
SENSORS
Capacitive Sensor for Oil and Water Tanks
Capacitive sensor with flexible flat ribbon cable for measuring liquid levels in different media e.g. water, oil, chemicals | use in conjunction with RCT Transmitter LEVELview.OIL/AQUA | standard cable length 1.80 m for self-assembly | exchangeable
- Transmitter LEVELview.PRO.OIL
- Transmitter LEVELview.PRO.AQUA
- Radio Transmitter LEVELview.BASIC.OIL
- Radio Transmitter LEVELview.BASIC.AQUA
The sensor can be connected by cable with plug to an RCT Transmitter type LEVELview. It is inserted into the tank through a suitable free tank opening (diameter min. 1″) so that the weight contacts the bottom. The sensor cable should not be placed directly along metal walls, since metal changes the capacity of the liquid level to be measured. A distance of at least 20 cm should be ensured. The counterweight can be unscrewed to shorten the length of the sensor cable depending on the tank or the desired measuring height. The sensor is calibrated via Web Application or can be preset at the factory to the desired measurement height and medium.
Application: capacitive flex probe for measuring liquid levels in different media (e.g. water, oil, chemicals)
Sensor housing: PP (polypropylene); fully encapsulated; connection thread 1″ for screwing into tank opening
Sensor cable: flexible stay cable (6-core); insulation fluoro-ethylene-propylene; standard length 1.80 m; self-assembling
Counterweight: stainless steel V2A
Output signal: 0-5 V
